The Production Process and Quality Control of Manganese Garnet Sand 2025

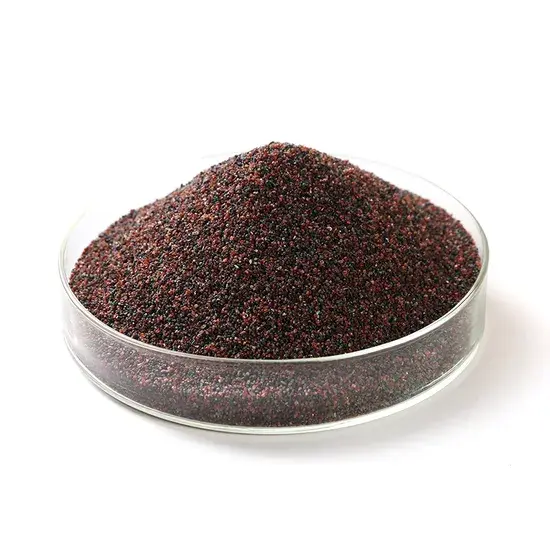

Manganese garnet sand is a highly specialized and essential material used in various industrial applications, most notably in water filtration. The unique properties of this sand, derived from manganese garnet (a manganese-rich mineral), make it effective for heavy metal removal, especially for iron and manganese, as well as in polishing and abrasive applications. However, achieving these results requires a precise production process and stringent quality control measures. In this blog post, we will take an in-depth look at the production process of manganese garnet sand, its quality control standards, and how to choose high-quality products for your needs.

Keytakeaways: manganese garnet sand

The journey of manganese garnet sand from raw material to finished product involves several key steps, including mining, processing, and sorting. These steps ensure that the final product meets the high standards required for its various applications, particularly in water treatment systems.

Mining and Extraction

Manganese garnet sand begins its journey deep in the earth, where it is extracted from naturally occurring deposits. The mining of garnet involves several stages, starting with surface mining or open-pit methods, where the ore is initially dug out of the earth. Manganese garnet is typically found in metamorphic rocks, and its extraction often involves separating the garnet-bearing rocks from surrounding materials like clay and quartz.

• Mining Method: Open-pit mining is most common for manganese garnet due to the relatively shallow depth at which it is found.
• Ore Composition: The ore typically contains between 60-70% manganese garnet, with other minerals like quartz, feldspar, and trace metals.

learn more from US Geological Survey on Mineral Resources

Crushing and Processing

Once the ore is extracted, it undergoes a crushing process to break down larger rock fragments into smaller, manageable pieces. This process is critical because the garnet crystals must be freed from the surrounding rock and processed in a form that will be usable in industrial applications.

• Crushing and Grinding: The mined ore is crushed into smaller fragments, typically between 20-50mm in size, and then further ground down to a fine powder using ball mills or other grinding machinery.
• Separation of Garnet: After crushing, the material is screened to separate garnet crystals from waste materials. This is usually done through mechanical methods, including dry or wet sieving.

Screening and Sorting

The next stage is screening, where the garnet crystals are separated by size. Different industrial applications require different grain sizes, so precise control over this step is critical.

• Grain Size Distribution: Manganese garnet sand typically has a range of particle sizes, with standard products being classified into fine, medium, and coarse grades. For water filtration, a common range for effective filtration is between 0.5 mm and 2 mm.
• Optical Sorting: In some cases, optical sorting techniques may be employed to ensure only the highest-quality garnet crystals are selected for use. These machines use sensors to identify and separate impurities and low-quality garnet particles from the rest.

Washing and Drying

After the garnet has been sorted, it is thoroughly washed to remove any remaining dust, minerals, or organic contaminants. The washed garnet is then dried to prevent moisture content from interfering with its final quality.

• Washing Process: Water and mild chemical agents are used to remove dirt and dust from the garnet, ensuring it remains clean and ready for use.
• Drying: The material is dried in industrial dryers to maintain the right moisture content, usually below 2%, which is optimal for storage and transport.

The quality control of manganese garnet sand is paramount to ensure that the final product meets the required standards for industrial use. There are several factors that must be carefully monitored during production.

Particle Size Distribution

The particle size distribution of manganese garnet sand is one of the most critical factors in its performance, especially for water filtration. The grain size directly impacts the material’s ability to filter water, with finer particles having a higher surface area and more efficient adsorption properties.

• Standard Grain Size for Water Filtration: For optimal filtration, the sand should have an effective size range of 0.5 mm to 2 mm. This ensures that the sand can effectively trap contaminants like heavy metals, suspended solids, and other particulates.
• Test Method: The sieve analysis method is used to determine particle size distribution, ensuring that the final product fits within the specified range.

Purity and Chemical Composition

The purity of manganese garnet sand is another critical factor that determines its suitability for various applications. A high level of purity ensures better performance in filtration and polishing tasks. The primary composition of manganese garnet sand includes manganese, iron, aluminum, and silicon, and the level of impurities must be minimal.

• Purity Standards: High-quality manganese garnet sand should have a manganese content of at least 60-70%, with impurities such as iron, aluminum, and silica kept to a minimum.
• Chemical Testing: Periodic chemical analysis using techniques like X-ray fluorescence (XRF) is conducted to determine the chemical composition and ensure that it meets the required specifications.

Durability and Abrasive Resistance

For industrial uses like abrasives, the durability and abrasive resistance of manganese garnet sand are crucial. The sand must withstand high pressures and maintain its integrity over time.

• Durability Test: The Mohs hardness test is used to measure the hardness of the garnet particles. Manganese garnet typically has a hardness rating between 7.5 and 8.5 on the Mohs scale, which makes it highly suitable for abrasive applications.
• Wear Resistance: A test known as the losing weight test is performed to measure the wear resistance of the sand. It ensures that the sand can withstand repeated use without significant degradation.

Moisture Content

Excess moisture in manganese garnet sand can lead to clumping, reduced filtration efficiency, and difficulty in handling. The moisture content must be monitored and controlled to ensure that the sand remains in optimal condition for storage and use.

• Moisture Content Standard: The moisture content should be below 2%, which is ideal for most applications. This is typically tested through a standard drying method.

Selecting high-quality manganese garnet sand is crucial to ensure that it performs effectively in its intended application. Here are some factors to consider when choosing a product:

• Verify Purity and Composition: Always ask for the chemical composition and purity report. The product should contain at least 60-70% manganese garnet, with minimal impurities.
• Check for Proper Sizing: Make sure that the sand has the right particle size distribution for your specific application. For water filtration, look for products with a grain size between 0.5 mm and 2 mm.
• Test the Durability: Ensure that the product meets the required durability and hardness standards. A higher Mohs hardness rating (7.5-8.5) is essential for abrasive applications.
• Source from Trusted Suppliers: Work with reputable suppliers that provide detailed quality control reports and certifications to guarantee the product’s performance.

The production process and quality control of manganese garnet sand are vital for ensuring its effectiveness and longevity in industrial applications, especially in water filtration systems. By understanding the steps involved in its production and the quality standards that must be met, you can make informed decisions when choosing manganese garnet sand for your needs. Whether you are using it for water filtration, polishing, or as an abrasive, the quality of the product is essential to achieving optimal results.
